Home > Products > All Collections > BEARINGS > spherical plain bearings > GX40T SPHERICAL PLAIN THRUST BEARING
  • GX40T SPHERICAL PLAIN THRUST BEARING
  • GX40T SPHERICAL PLAIN THRUST BEARING

GX40T SPHERICAL PLAIN THRUST BEARING

No.00266
GX40T SPHERICAL PLAIN THRUST BEARING
GET A QUOTE
  • GX40T SPHERICAL PLAIN THRUST BEARING

Description

Product parameters

  • Bearing type GX40T

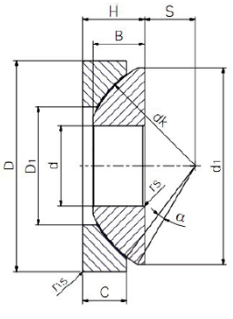

  • Boundary dimension mm
    d 40
    D 105
    B 27
    C 21.5
    H 32
    dk 114
    S 24.5
    d1 max 97
    d2 -
    D1 min 59
    rs,r1s min 1
    Alpha 6
  • Load ratings kN
    dynamic load 1085
    Dead load 1805
  • Weight: kg 1.59
  • Interchange
    INA GE40AW
    SKF GX40F
