FINE ENGINEERING Wire Race Roller Bearings are precision slewing bearings with a unique design. Their defining feature is that rolling elements (cylindrical/ tapered rollers) run on hardened, precision-ground steel wires instead of a solid, one-piece raceway integrated into the bearing rings. Renowned for being ultra-thin, lightweight, high-precision, and highly rigid, they are engineered for high-end equipment where space is limited, weight is critical, and heavy loads with precise rotation are required.
Technical Features:
Structural Principle (Revolutionary Design)
- Separate Raceways: The running tracks are 2–4 precision rings of hardened, ground high-carbon chromium steel wire fitted into grooves in the inner and outer rings.
- 4-Point/ 2-Point Contact: Rollers make line contact with the wire raceways, enabling simultaneous support of radial, axial, and overturning moments.
- Lightweight Housing: Since the load is carried by the wires, the bearing housing does not bear the rolling stress, allowing the use of lightweight materials like aluminum alloy, 42CrMo,titanium, or plastic, reducing weight by 40%–60% compared to conventional bearings.
Size & Installation Characteristics
- Ultra-Thin Cross-Section: Extremely low cross-sectional height (1/3 to 1/2 of traditional bearings), saving critical axial and radial space for flat designs.
- Large Diameter, Small Volume: Enables very large slewing diameters with an extremely thin profile, overcoming limitations of standard bearings.
- Design Flexibility: Inner/outer rings can be split, segmented, or geared (internal/external) for custom interfaces.
Load Capacity & Rigidity
- High Rigidity & Low Deflection: The hardened wire raceways provide low contact stress and excellent resistance to deformation.

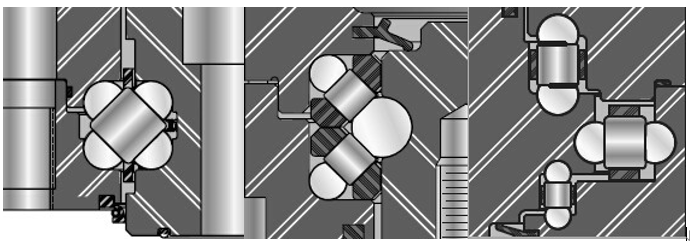

- Combined Load Capability: Single, double, or triple roller configurations to handle radial, axial, and moment loads from all directions.
- Shock & Vibration Resistance: Line contact and wire construction offer good damping for high-shock, high-vibration environments.
Sealing, Lubrication & Life
Sealing: Multi-labyrinth or contact seals for dust, water, and oil protection in harsh environments.
Lubrication: Special greases or oil-air lubrication for low friction, long-lasting lubrication, and extended maintenance intervals.
Service Life: Long fatigue life with minimal wear; replaceable wire raceways significantly reduce maintenance costs.
Main Application Fields:
Medical Equipment & Life Sciences
- Medical Imaging: Rotating gantries in CT, MRI, and C-arm X-ray machines, demanding low noise, high precision, zero vibration, and lightweight construction.
- Surgical Robots: Joint arms and positioning platforms requiring minimal installation space, high rigidity, resistance to overturning moments, and smooth motion.
- Dental & Ophthalmic Devices: Precision rotary stages and scanners focusing on miniaturization, low friction, and long life.
Industrial Robotics & Automation
- Collaborative & 6-Axis Robots: Joint bearings that deliver high load capacity, high rotational accuracy, and low inertia within a compact envelope.
- Precision Rotary Tables & Indexers: CNC machines, inspection equipment, and semiconductor tools requiring micron-level positioning accuracy and smooth high-speed operation.
- SCARA & Delta Robots: Lightweight arms to reduce inertia and improve dynamic response.
Aerospace & Defense
- Satellites & Radar Antennas: Azimuth/ elevation mechanisms for space and outdoor environments, requiring lightweight, high reliability, and long maintenance-free life.
- EO/IR Pods & Drone Gimbals: Ultra-thin profile, high rigidity, shock resistance, and high-precision stabilization.
- Aircraft Actuators & Landing Gear: Weight reduction and performance under alternating loads and extreme temperatures.
Precision Optics & Semiconductors
- Telescopes & Astronomical Instruments: Large slewing supports with low deflection, high precision, and resistance to wind vibration.
- Lithography & Wafer Handling: Cleanroom-compatible, low-particle generation, ultra-high precision, and zero backlash.
- Laser Systems & Optical Scanners: High-speed smooth rotation and long-term stability.
Special & High-End Machinery
-
Textile Machinery (Circular Knitting Machines): Core rotating components with ultra-thin structure, high-speed operation, and wear resistance.
-
Radar & Communication: Vehicle/ shipborne radar turntables with overturning resistance, vibration resistance, and adaptability to harsh conditions.
-
Food & Packaging: Vacuum fillers and rotary packaging machines offering compact design, easy cleaning, and corrosion resistance.
-
Measuring Instruments & CMMs: Ultra-high precision, low friction, low hysteresis, and long-term stability.
