Home > Products > All Collections > BEARINGS > spherical plain bearings > GEG280E RADIAL SPHERICAL PLAIN BEARING
  • GEG280E RADIAL SPHERICAL PLAIN BEARING
  • GEG280E RADIAL SPHERICAL PLAIN BEARING

GEG280E RADIAL SPHERICAL PLAIN BEARING

No.00236
DALIAN FINE ENGINEERING GEG280E RADIAL SPHERICAL PLAIN BEARING
GET A QUOTE
  • GEG280E RADIAL SPHERICAL PLAIN BEARING

Description

Product parameters

  • Bearing type GEG280ES
  • Bearing type GEG280ES-2RS

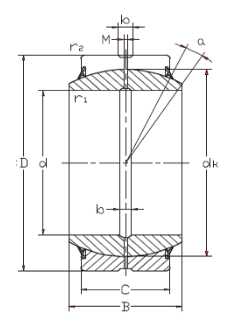

  • Boundary dimensions (mm)
    d 280
    D 430
    B 210
    C 120
    dk 375
    rs min 1.1
    r1s min 1.1
    Alpha degree 15
  • Rated load kn
    dynamic load 3800
    Dead load 19100
    Weight ≈ kg 96.6
  • Interchange
    INA GE280FO
    INA GE280FO-2RS
    SKF GEH280ES
    SKF GEH280ES-2RS
