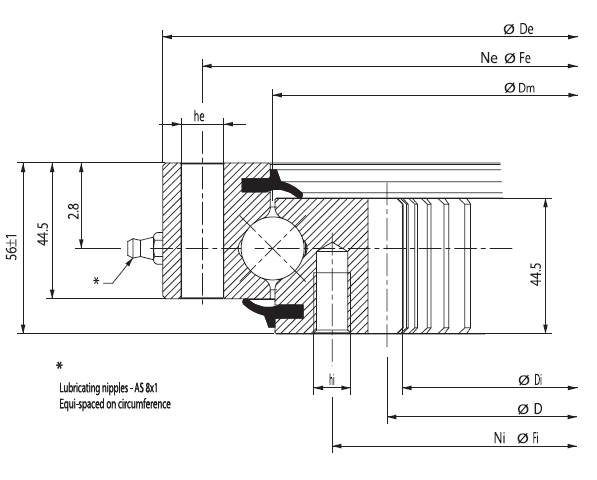

| FOUR POINT CONTACT SLEWING BEARINGS WITH INTERNAL GEAR TEETH | |||||||||||||
| designation | main dimensions | fixing holes | gear teeth | mass | |||||||||
| De | Dm | Di | Fe | he | Ne | Fi | hi | Ni | D | m | Z | Kg | |
| RKS.062.20.0414 | 486 | 414 | 325 | 460 | 14 | 24 | 375 | M12 | 24 | 335 | 5 | 67 | 31 |
| RKS.062.20.0544 | 616 | 544 | 444 | 590 | 14 | 32 | 505 | M12 | 32 | 456 | 6 | 76 | 42 |
| RKS.062.20.0644 | 716 | 644 | 546 | 690 | 14 | 36 | 605 | M12 | 36 | 558 | 6 | 93 | 50 |
| RKS.062.20.0744 | 816 | 744 | 648 | 790 | 14 | 40 | 705 | M12 | 40 | 660 | 6 | 110 | 58 |
| RKS.062.20.0844 | 916 | 844 | 736 | 890 | 14 | 40 | 805 | M12 | 40 | 752 | 8 | 94 | 69 |
| RKS.062.20.0944 | 1016 | 944 | 840 | 990 | 14 | 44 | 905 | M12 | 44 | 856 | 8 | 107 | 76 |
| RKS.062.20.1094 | 1166 | 1094 | 984 | 1140 | 14 | 48 | 1055 | M12 | 48 | 1000 | 8 | 125 | 91 |
